Discount Y/YKS/YX modular motors Factories, Product

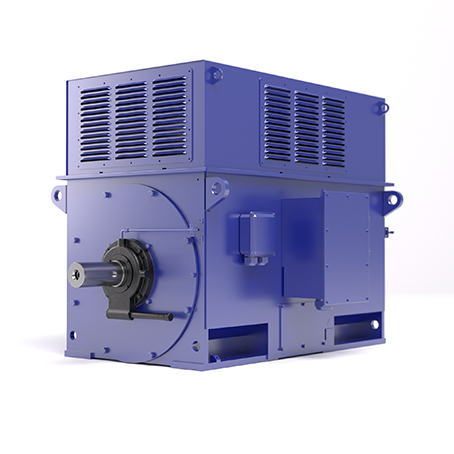

Y/YKS/YX modular motorsstand out for high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and convenient maintenance. The motors comply with the national standard GB755 and the relevant international standards, and suitable to drive compressors, fans, water pumps, industrial freezers, conveyor belts, crushers and other general machinery. Please specify the requirements in the order when motors are mounted on high moment of inertia equipment like blower, coal pulverizer, rolling mill, winch and belt conveyor. The motor frame is welded by steel plate, and offer excellent rigidity and vibration resistance performance. The non-stop filling and discharging bearing system ensures a convenient maintenance. Special requirements on voltage, power, frequency and mounting dimension can be customized. YKS water cooling motors have the same power range, performance, dimension as Y series.

Send Inquiry

Product Description

■

Robust Construction: The motor base is welded into one body by steel plate, providing excellent rigidity and vibration resistance.

■

Premium Insulation: Features F grade insulation structure with vacuum pressure dip paint for superior insulation performance.

■

Easy Maintenance: Equipped with a non-stop oil filling and discharging device for convenient user maintenance.

Special requirements such as voltage, power, frequency, and installation size can be fully customized. The YKS (water-cooled) series motor maintains the same power grade, performance index, and installation size as the Y series motors.

Technical Specifications
Frame size	355-710 (6KV) / 400-710 (10KV)
Output	220KW-5000KW (6KV) / 220KW-4500KW (10KV)
Voltage/frequency	6KV, 10KV / 50Hz
Mounting arrangements	IMB3
Protection degree	IP23
Cooling method	IC611/IC616
Insulation class	F
Ambient temperature	-15°C ~ +40°C
Duty	S1
Service factor	1.0

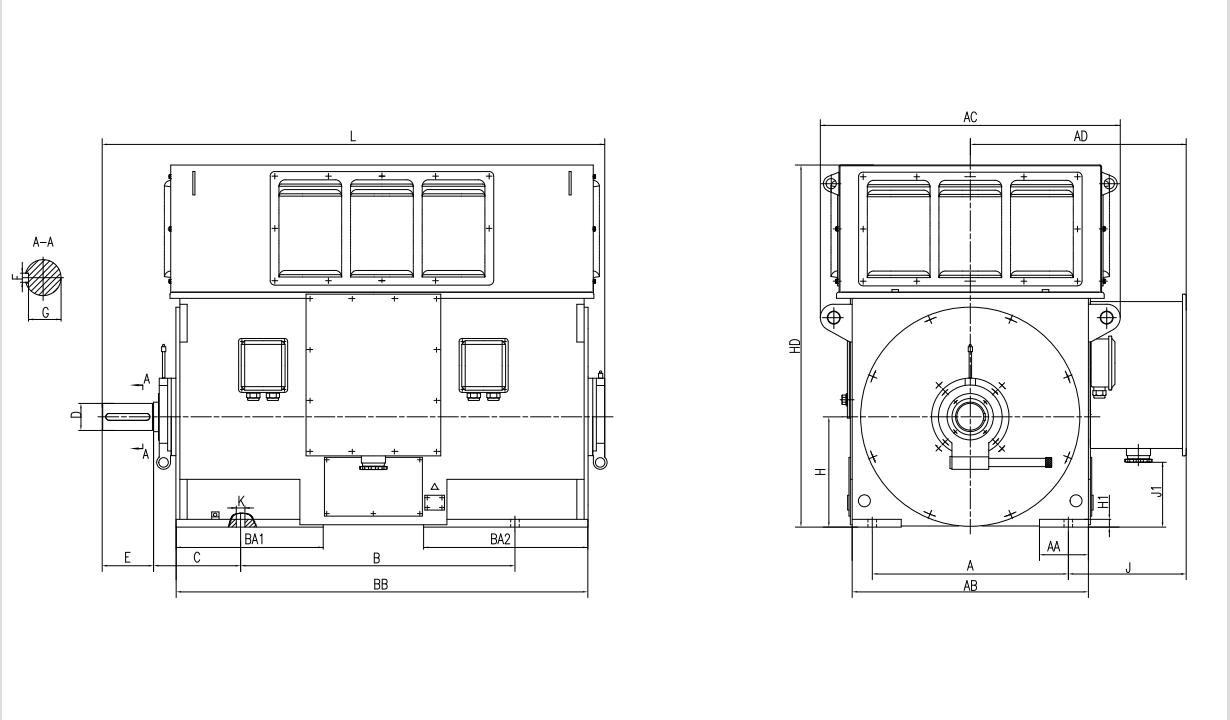

Frame NO.	Poles	Mounting dimensions (mm)									Overall dimensions (mm)
Frame NO.	Poles	A	B	C	D	E	F	G	H	K	AC	AD	HD	AB	BB	AA	J	J1	H1	L
355	2-6	630	900	315	80-100	170-210	22-28	71-90	355	28	1100	800	1170	784	1380	170	224	136	28	1870-1890
400	2-10	710	1000	335-375	90-110	170-210	25-28	81-100	400	35	1150	850	1330	884	1540	200	234	168	28	1980-2090
450	2-12	800	1120	355-400	100-130	210-250	28-32	90-119	450	35	1300	900	1475	964	1680	200	229	260	32	2180-2340
500	2-12	900	1250	475-560	110-140	210-250	28-36	100-128	500	42	1420	965	1665	1094	1830	200	244	358	32	2550-2790
560	2-12	1000	1400	500-560	130-160	300	32-40	119-147	560	42	1600	1100	1850	1176	1940	200	300	345	40	2900-3020
630	2-12	1120	1600	530-560	140-180	250-450	36-45	128-165	630	48	1800	1200	2050	1336	2050	200	320	510	46	3100-3220

Y/YKS/YX series motors comply with the national standard GB755 and relevant international standards. The frames are welded by steel plate, offering excellent rigidity and vibration resistance performance. They are manufactured with an F insulation structure and VPI vacuum pressure impregnation process. The non-stop filling and discharging bearing system ensures convenient maintenance throughout the motor's lifecycle.

What standards do these motors comply with?

The motors comply with the national standard GB755 and relevant international standards.

What is the insulation class of the YKS series?

These motors utilize an F grade insulation structure, treated with a vacuum pressure impregnation (VPI) process.

Can the motor specifications be customized?

Yes, special requirements such as voltage, power, frequency, and installation dimensions can be customized to meet specific user needs.

What cooling methods are used?

The standard cooling methods are IC611 and IC616, ensuring efficient thermal management.

What is the protection degree of these motors?

The standard protection degree for these series is IP23.

How is the motor base constructed?

The motor base is welded into a single body using steel plates, which provides superior rigidity and resistance to vibration.
