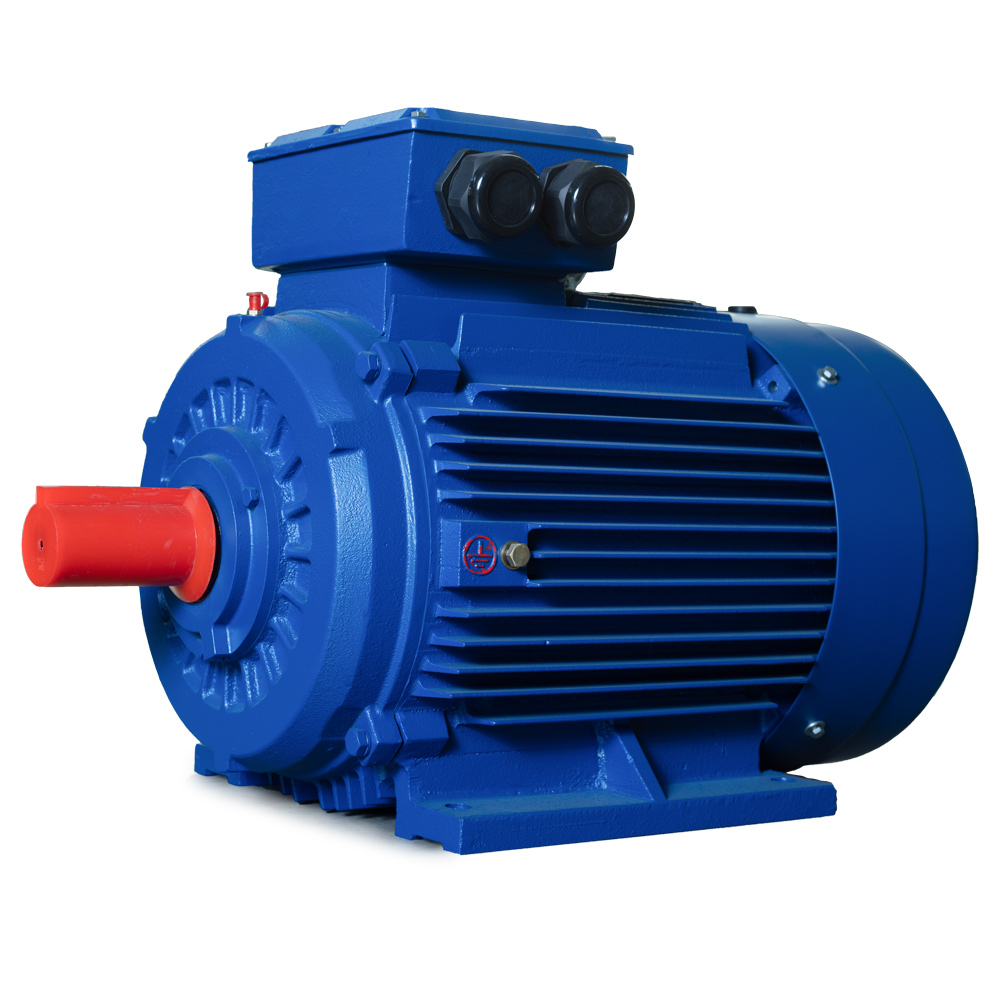

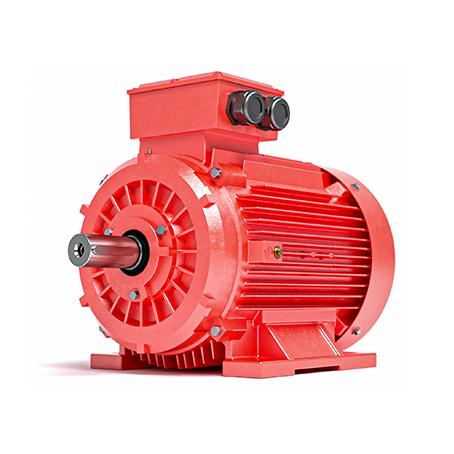

China YD Pole-Changing Motors Exporter, Product

YD series motors are derived from IE1 series motors. By changing the winding connection, the motors can obtain different output and speed to match the load characteristics of machinery. They can drive equipment with high efficiency. YD series motors can be widely used in machine tools, mining, metallurgy, textile, printing and dyeing, chemical industry and agricultural machinery and other industries.

Send Inquiry

Product Description

Technical Specifications

Frame Size 80 - 280

Output Power 0.45kW - 82kW

Voltage / Frequency ≤1000V / 50Hz, 60Hz

Mounting Arrangements IM B3 / IM B5 / IM B35 / IM V1

Protection Degree IP55 / IP56 / IP65 / IP66

Insulation / Temp Rise Class F / Class B

Ambient Temperature -15℃ ~ +40℃

Duty / Service Factor S1 / 1.0

Cooling Method IC411 / IC416 / IC418 / IC410

• Relative humidity should be less than 90%

• Altitude should be lower than 1000 m above sea level.

Ordering Information: Please specify the motor type, power, voltage, speed, insulation class, protection class, and mounting type when placing an order.

Custom Design Capabilities

We provide specialized design and production services to meet specific customer requirements:

Special voltage, frequency, and power configurations.

Enhanced insulation and protection classes.

Terminal box on the left side, double shaft ends, or special shaft dimensions.

High-temperature or low-temperature specialized motors.

Optimized for high-altitude (plateau) or outdoor environments.

Equipped with heaters, PT100 for bearings/windings, PTC, encoders, or insulated bearings.

YD Series Motors: By changing the winding connection, YD series motors can obtain different output levels and speeds to drive equipment with high efficiency.

* This catalogue serves as a reference. Product specifications may change without prior notice.

Frequently Asked Questions

What is the range of output power available for these motors?

The motors offer a versatile output range starting from 0.45kW up to 82kW, suitable for various industrial applications.

What environmental conditions are required for standard operation?

Standard motors are designed for ambient temperatures between -15℃ and +40℃, with humidity below 90% and altitudes lower than 1000m.

Can these motors be used in harsh or outdoor environments?

Yes, we can produce special motors with protection degrees up to IP66 and customized features for outdoor or plateau use.

What mounting options can I choose from?

Available mounting arrangements include IM B3, IM B5, IM B35, and IM V1 to accommodate different machinery setups.

Are there options for thermal protection and monitoring?

Absolutely. We can equip motors with PT100 sensors for bearings or windings, PTC thermistors, and heaters for moisture control.

How does the YD series motor achieve multi-speed operation?

The YD series achieves different outputs and speeds by changing the winding connections, allowing for high-efficiency performance across different operational modes.
