Buy IE5 Efficiency Motor Factories, Exporters

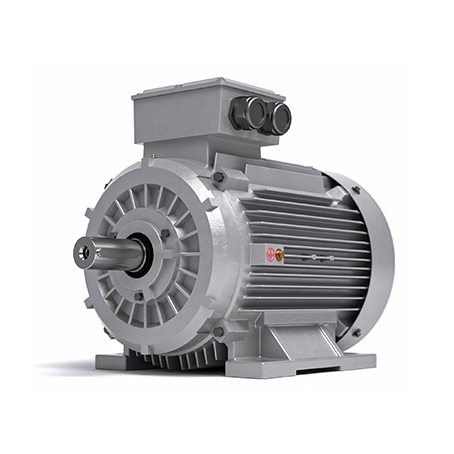

SUNVIM IE5 electric motors are manufactured according to international standard IEC60034-30. All IE5 motors are provided with premium quality cold-rolled silicon steel, low harmonics winding, VPI vacuum pressure impregnation and high precision CNC machining process. SUNVIM IE5 motors have the advantage of high efficiency, low temperature rise, low noise, good reliability and long service time. The motors can be provided with protection grade IP55, IP56, IP65, IP66 and insulation grade F, H, and have registered in national energy label system.

Send Inquiry

Product Description

Technical Specifications

Standard	IEC60034-30
Frame size	80-355
Output	0.75kW-315kW
Efficiency class	IE5
Voltage/frequency	≤1000V/50Hz
Protection degree	IP55/IP56/IP65/IP66
Insulation class/Temperature rise class	F/B
Mounting arrangements	IM B3/IM B5/IM B35/IM V1
Ambient temperature	-15°C ~ +40°C
Relative humidity should be less than 90%
Altitude should be lower than 1000 m above sea level
Cooling method	IC411/IC416/IC418/IC410
Duty	S1
Service factor	1.0

Product Overview

IE5 Series motors are cage induction motors designed in accordance with IEC60034-30 standards and feature IE5 ultra-high energy efficiency. These motors represent the cutting edge of energy-saving technology for industrial applications.

Special Design & Customization

We can design and manufacture special motors according to specific requirements:

Special voltages, frequencies, and power outputs.
Enhanced insulation and protection classes.
Left-hand terminal boxes, double shaft ends, and special shaft configurations.
High-temperature or low-temperature specialized motors.
Configurations for highland or outdoor environmental use.
Higher power ratings or special service factors.
Integrated heating, bearings, or windings with PT100, PTC, etc.
Equipped with encoders, isolated bearings, or isolated bearing constructions.

Note: Please specify motor type, power, voltage, speed, and mounting method when ordering.

Frequently Asked Questions

What is the efficiency level of the IE5 Series motors? The IE5 series motors are designed to meet the IE5 ultra-high efficiency standards as per IEC60034-30.

What power range is covered by these motors? The series covers an output range from 0.75kW up to 315kW, with frame sizes ranging from 80 to 355.

What are the available protection degrees? We offer various protection levels including IP55, IP56, IP65, and IP66 to suit different environmental conditions.

Can these motors be customized for extreme temperatures? Yes, we can manufacture specialized high-temperature or low-temperature motors based on your specific application requirements.

What cooling methods are supported? The standard cooling methods available are IC411, IC416, IC418, and IC410.

Are special voltages and frequencies available? Yes, we can design motors with special voltages and frequencies to meet the requirements of different regional power grids or industrial systems.
