Famous YEJ Brake Motors Manufacturer, Exporters

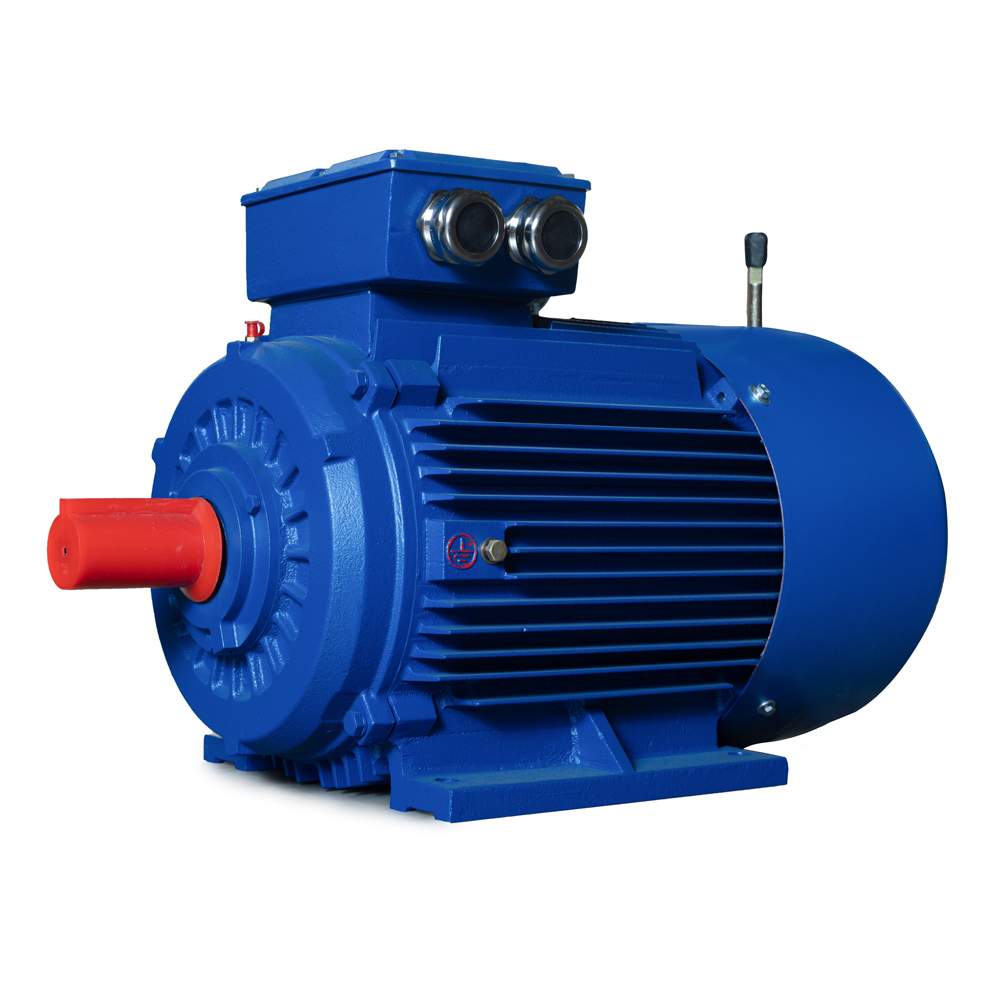

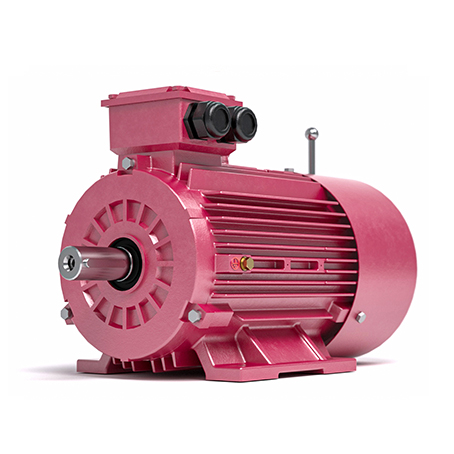

YEJ Brake series motors are derived from IE1 series motors with fast braking, simple structure and high stability. They are widely used on mechanical equipment and driving machines where rapid and accurate braking is demanded, such as lathe machine, packing machine, wood machine, food processing equipment, chemical engineering, textile machine, architectural machine, gear reducer and so on.

Send Inquiry

Product Description

Technical Specifications

Frame size	80-280
Output	0.18kW-90kW
Voltage/ frequency	≤1000V/50Hz, 60Hz
Protection degree	IP55 (motor) / IP23 (brake)
Insulation class/Temperature rise class	F/B
Mounting arrangements	IM B3/IM B5/IM B35/IM V1
Ambient temperature	-15°C ~ +40°C
Relative humidity should be less than 90%.
Altitude should be lower than 1000 m above sea level
Cooling method	IC411/IC416/IC418/IC410
Duty	S1
Service factor	1.0

YEJ series motors can fast braking, used on mechanical equipment and driving machines where rapid and accurate braking is demanded.

Customizable Solutions

According to the requirement of customer, we can design and produce special motors as followed:

Special voltage, frequency and power

Special insulation class and protection class

Terminal box on the left side, double shaft ends and special shaft

High temperature motor or low temperature motor

Used on plateau or outdoor environments

Higher power or special service factor

Heater, PT100 for bearings or winding, PTC, etc.

Encoder, insulated bearings, or insulated bearing structure

Other customized requirements

* This catalogue is only a reference for users. Please note the rated data when ordering, such as the motor type, power, voltage, speed, insulation class, protection class, mounting type and so on.

Frequently Asked Questions

What are the main applications of YEJ series motors?

YEJ series motors are designed for mechanical equipment and driving machines that require rapid and accurate braking, such as lifting machinery, transport machinery, and packaging equipment.

What is the protection degree for the motor and brake?

The motor itself features an IP55 protection degree, while the electromagnetic brake is rated at IP23.

Can these motors operate in extreme temperatures?

Standard models are designed for ambient temperatures between -15°C and +40°C. However, we can customize high or low-temperature versions upon request.

What insulation classes are available?

The standard insulation class is Class F, with a Class B temperature rise limit for enhanced durability.

Are custom mounting arrangements available?

Yes, we support various mounting arrangements including IM B3, IM B5, IM B35, and IM V1 to suit different installation needs.

Is it possible to add thermal protection like PT100 or PTC?

Yes, we can provide motors equipped with heaters, PT100 sensors for bearings or windings, and PTC thermistors according to customer specifications.
