Famous IE2 Efficiency Motor Manufacturer, Factory

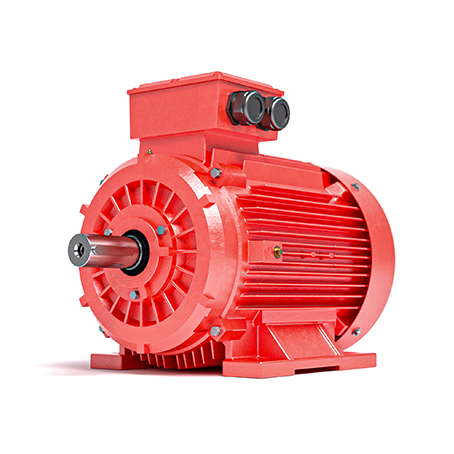

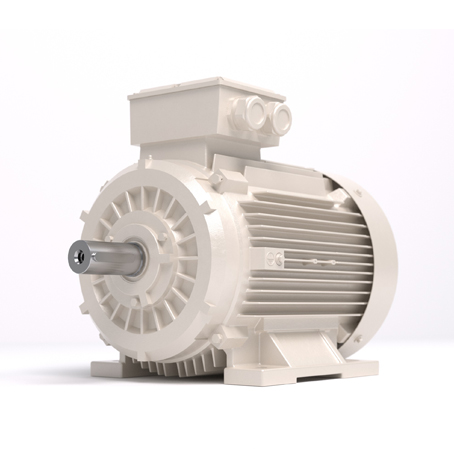

SUNVIM IE2 electric motors are manufactured according to international standard IEC60034-30, and are totally enclosed fan cooled squirrel cage motors with new material, new process and new standard. They are widely used to drive various general equipments, like fans, pumps, machining tools, compressors, and transport machineries. The motors can also work safely and stably in industry field of petroleum, chemical , steel, mining and other places where there is with heavy load and harsh operating environment. All IE2 motors are provided with protection grade IP55, insulation grade F.

Send Inquiry

Product Description

Technical Specifications

Standard	IEC60034-30
Frame size	80-355
Output	0.18kW-355kW
Efficiency class	IE2
Voltage/Frequency	≤ 1000V / 50Hz, 60Hz
Protection degree	IP55 / IP56 / IP65 / IP66
Insulation/Temp Rise	Class F / B
Mounting	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	-15°C to +40°C
Relative humidity should be less than 90%
Altitude should be lower than 1000m above sea level
Cooling Method	IC411 / IC416 / IC418 / IC410
Duty	S1
Service factor	1.0

Product Overview

IE2 Series motors are cage induction motors designed in accordance with IEC standards and IE2 energy efficiency requirements. These motors offer high reliability and are suitable for various industrial applications.

Custom Design & Special Requirements

We provide custom design and production for special motor products tailored to your specific needs:

Special voltages, frequencies and power ratings
Enhanced insulation and protection classes
Custom junction box placement (e.g., left side)
Double shaft ends and special shaft configurations
High temperature or low temperature specific models
Highland or outdoor environment specialized use
Higher power or special service factors
Equipped with heaters, PT100/PTC bearings or windings
Integration with encoders and insulated bearing constructions

Ordering Information

When ordering, please specify the required motor data: power, voltage, speed, insulation class, protection class, and installation type. Note: This catalog is for reference only; product specifications may change without prior notice.

Frequently Asked Questions

1. What is the efficiency rating of this motor series?

The series is designed according to the IE2 energy efficiency class as per IEC60034-30 standards.

2. What power range is covered by the IE2 series?

We offer a wide output range from 0.18kW up to 355kW, with frame sizes ranging from 80 to 355.

3. Can these motors be used in harsh environments?

Yes, they support protection degrees from IP55 up to IP66 and can operate in temperatures ranging from -15°C to +40°C. Custom versions for highland or outdoor use are also available.

4. What mounting configurations are available?

Standard mounting arrangements include IM B3, IM B5, IM B35, and IM V1 to suit various installation requirements.

5. Are custom voltage or shaft requirements supported?

Absolutely. We can customize voltages, frequencies, double shaft ends, special shaft dimensions, and even special insulation classes upon request.

6. What cooling methods do these motors use?

The standard cooling methods include IC411, IC416, IC418, and IC410, ensuring optimal thermal performance during S1 duty cycles.
