ODM Y Series (IP23) High Voltage Three Phase Asynchronous Induction Exporter, Company

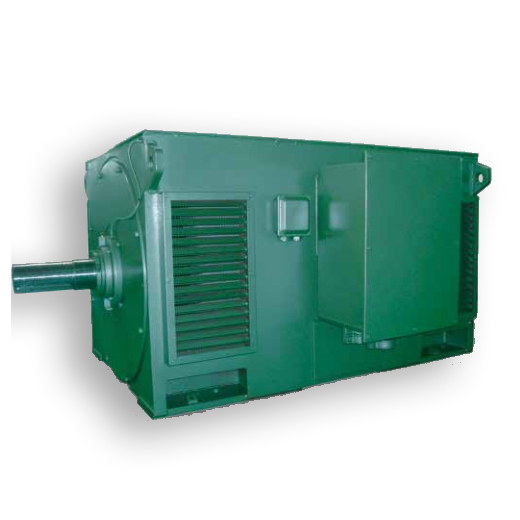

Y series high voltage motor is squirrel-cage three phase asynchronous induction motor .The motor has protection class IP23,cooling method IC01,insulation class F, and mounting arrangement IMB3.The rated voltage is 6KV or 10 KV. This series motor is designed to be a box-type with light weight and high rigidity. The motors have good features of high efficiency, low noise, low vibration, reliable performance, easy installation and maintenance. They are widely used in power station, water plant, petrochemical, metallurgy and mining industries.

Send Inquiry

Product Description

Y series high voltage motor is a squirrel-cage three-phase asynchronous induction motor. Designed for durability and efficiency, these motors feature a protection class of IP23 and operate at rated voltages of 6KV or 10KV, making them ideal for heavy-duty industrial applications.

Technical Specifications

Frame size	H355-710MM (6kV), H450-710MM (10kV)
Rated power	220kW-5000kW (6KV), 250kW-3550kW (10KV)
Energy Efficiency	IE1
Voltage and Frequency	6kV / 50Hz, 10kV / 50Hz
Degree of Protection	IP23
Insulation / Temp Rise	Class F
Installation Method	B3
Ambient Temperature	-15°C ~ +40°C
Cooling Method	IC01
Duty	S1 (Continuous)
Service Factor	1.0

Ordering & Customization Options

Please specify rated data when ordering: motor type, power, voltage, speed, insulation class, protection class, and mounting type.

We provide comprehensive design and production services for special motor requirements:

Special voltage, frequency, and power

Special insulation and protection classes

Left-side terminal box or double shaft ends

High/Low temperature or plateau/outdoor use

Higher power or special service factors

Heaters, PT100 for bearings/winding, or PTC

Encoders and insulated bearing structures

Frequently Asked Questions

What is the rated voltage range for Y series motors?

The Y series high voltage motors are available in both 6kV and 10kV configurations at 50Hz frequency.

What level of protection do these motors offer?

These motors come with a standard IP23 protection degree, suitable for specific indoor industrial environments.

Can these motors be used in extreme temperatures?

The standard operating ambient temperature range is -15°C to +40°C. However, we can design specialized versions for high or low-temperature environments upon request.

What is the cooling method and duty cycle?

The motors utilize the IC01 cooling method and are rated for S1 continuous duty, ensuring reliable performance under constant load.

Are custom shaft designs available?

Yes, we can produce motors with double shaft ends or special shaft dimensions according to your specific machinery requirements.

What additional monitoring options can be integrated?

We can equip the motors with PT100 temperature sensors for bearings or windings, PTC thermistors, encoders, and heaters for moisture prevention.
