Buy FP Series PM Motors Manufacturers, Exporters

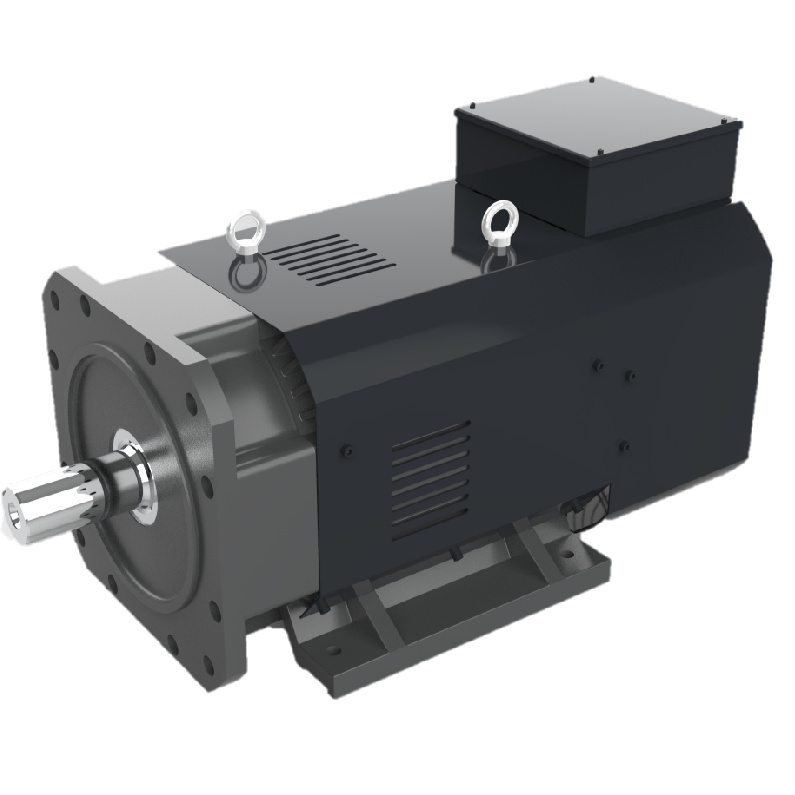

The FP series air-cooled permanent magnet synchronous motor is a leading motor product,independently developed and designed by our company, in response to the national energy conservation and emission reduction policies, and market demands. It boasts advantages such as high efficiency, high power factor, and large torque, which traditional motors cannot match, making it particularly suitable for high-energy-efficiency and high-performance application scenarios. Meanwhile, it also features a solid structure, low vibration, low noise, safe and reliable operation, etc., which can meet various needs in the field of industrial transmission.

Send Inquiry

Product Description

⚡ Technical Specifications - Rated Speed 3000rpm

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Rated Torque (N·m)	Rated Frequency (Hz)	Wiring Method
112-5.5-30	5.5	380	9.6	94	0.98	17.5	200	Y
112-7.5-30	7.5	380	13	94.5	0.98	23.9	200	Y
132-11-30	11	380	19	95	0.98	35	200	Y
132-15-30	15	380	25.8	95.3	0.98	47.8	200	Y
132-18.5-30	18.5	380	31.7	95.6	0.98	58.9	200	Y
132-22-30	22	380	37.5	95.9	0.98	70	200	Y
160-30-30	30	380	51	96.1	0.98	95.5	200	Y
160-37-30	37	380	63	96.3	0.98	117.8	200	Y
180-45-30	45	380	76	96.4	0.98	143	200	Y
200-55-30	55	380	91	96.5	0.98	175.1	200	Y
225-75-30	75	380	125	96.6	0.98	238.8	200	Y
225-90-30	90	380	150	96.7	0.98	286.5	200	Δ
250-110-30	110	380	183	96.7	0.98	350.2	200	Δ
250-132-30	132	380	220	96.7	0.98	420.2	200	Δ
250-160-30	160	380	267	96.7	0.98	509.3	200	Δ
250-185-30	185	380	309	96.7	0.98	588.9	200	Δ
250-200-30	200	380	333	96.7	0.98	636.7	200	Δ
280-220-30	220	380	371	96.7	0.97	700.3	200	Δ
280-250-30	250	380	422	96.7	0.97	795.8	200	Δ
280-280-30	280	380	472	96.7	0.97	891.3	200	Δ
280-315-30	315	380	521	96.7	0.97	1002.7	200	Δ

⚙️ Technical Specifications - Rated Speed 1500rpm

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Rated Torque (N·m)	Rated Frequency (Hz)	Wiring Method
112-5.5-15	5.5	380	9.8	92.1	0.98	35	100	Y
112-7.5-15	7.5	380	13.4	92.6	0.98	47.8	100	Y
132-11-15	11	380	19.5	93.6	0.98	70	100	Y
132-15-15	15	380	26.1	94	0.98	95.5	100	Y
132-18.5-15	18.5	380	32.1	94.3	0.98	117.8	100	Y
160-22-15	22	380	38	94.7	0.98	140.1	100	Y
160-30-15	30	380	51.7	95	0.98	191	100	Y
180-37-15	37	380	63.5	95.3	0.98	235.6	100	Y
180-45-15	45	380	77.1	95.6	0.98	286.5	100	Y
200-55-15	55	380	94	95.8	0.98	350.2	100	Y
225-75-15	75	380	124.3	96	0.98	477.5	100	Y
225-90-15	90	380	149	96.2	0.98	573	100	Δ
250-110-15	110	380	182	96.3	0.98	700.3	100	Δ
250-132-15	132	380	225	96.4	0.98	840.4	100	Δ
280-160-15	160	380	271	96.6	0.98	1018.7	100	Δ
280-185-15	185	380	313	96.7	0.98	1177.8	100	Δ
280-200-15	200	380	338	96.7	0.98	1273.3	100	Δ
280-220-15	220	380	372	96.7	0.98	1400.7	100	Δ

🔧 Technical Specifications - Rated Speed 1000rpm

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Rated Torque (N·m)	Rated Frequency (Hz)	Wiring Method
112-3-10	3	380	5.3	91.8	0.98	28.7	66.7	Y
112-4-10	4	380	7	92.7	0.98	38.2	66.7	Y
112-5.5-10	5.5	380	9.9	93.4	0.98	52.5	66.7	Y
132-7.5-10	7.5	380	13.4	94	0.98	71.6	66.7	Y
132-11-10	11	380	19	94.5	0.98	105.1	66.7	Y
160-15-10	15	380	25.8	94.9	0.98	143.3	66.7	Y
160-18-10	18.5	380	32.7	95.3	0.98	176.7	66.7	Y
180-22-10	22	380	38.7	95.6	0.98	210.1	66.7	Y
180-30-10	30	380	52	95.8	0.98	286.5	66.7	Y
200-37-10	37	380	64	96	0.98	353.4	66.7	Y
225-45-10	45	380	76.6	96.2	0.98	429.8	66.7	Y
225-55-10	55	380	91	96.3	0.98	525.3	66.7	Y
250-75-10	75	380	124	96.4	0.98	716.3	66.7	Y
250-90-10	90	380	149	96.5	0.98	859.5	66.7	Δ
280-110-10	110	380	185	95.8	0.98	1050.5	66.7	Δ
280-132-10	132	380	225	96	0.98	1260.6	66.7	Δ
280-160-10	160	380	272	96.2	0.98	1528	66.7	Δ

📊 Technical Specifications - Rated Speed 750rpm

Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	Power Factor (cosφ)	Rated Torque (N·m)	Rated Frequency (Hz)	Wiring Method
112-3-75	3	380	5.5	89	0.98	38.2	50	Y
112-4-75	4	380	7.3	90.2	0.98	50.9	50	Y
112-5.5-75	5.5	380	9.9	90.9	0.98	70	50	Y
132-7.5-75	7.5	380	13.4	91.5	0.98	95.5	50	Y
160-11-75	11	380	19.4	92.7	0.98	140.1	50	Y
180-15-75	15	380	27.1	93.3	0.98	191	50	Y
180-18-75	18.5	380	33.1	94	0.98	235.6	50	Y
180-22-75	22	380	38.6	94.5	0.98	280.1	50	Y
200-30-75	30	380	51.8	94.7	0.98	382	50	Y
225-37-75	37	380	63.7	95	0.98	471.1	50	Y
225-45-75	45	380	75	95.2	0.98	573	50	Y
250-55-75	55	380	92	95.4	0.98	700.3	50	Y
280-75-10	75	380	128	95.6	0.98	955	50	Y
280-90-10	90	380	154	95.6	0.98	1146	50	Δ
280-110-10	110	380	190	95.6	0.98	1400.7	50	Δ

Frequently Asked Questions

What is the standard voltage and frequency for these motors?

The standard voltage for these models is 380V, with rated frequencies ranging from 50Hz to 200Hz depending on the specific model and speed configuration.

What is the maximum efficiency reached by these motors?

These motors are designed for high efficiency, with several models reaching an efficiency rating of up to 96.7%.

Which wiring methods are supported?

Depending on the power rating and model, the motors use either "Y" (Star) or "Δ" (Delta) wiring methods to ensure optimal performance.

Are there different speed options available?

Yes, we provide motors with four distinct rated speed categories: 3000rpm, 1500rpm, 1000rpm, and 750rpm to meet various industrial requirements.

What is the power range covered by these motor series?

The series covers a wide range of power requirements, from small 3kW units up to large industrial 315kW motors.

How is the power factor maintained across the models?

Most models maintain a high power factor of approximately 0.98 (cosφ), ensuring energy efficiency and stable operation.
