Discount YL modular motors Pricelist, Companies

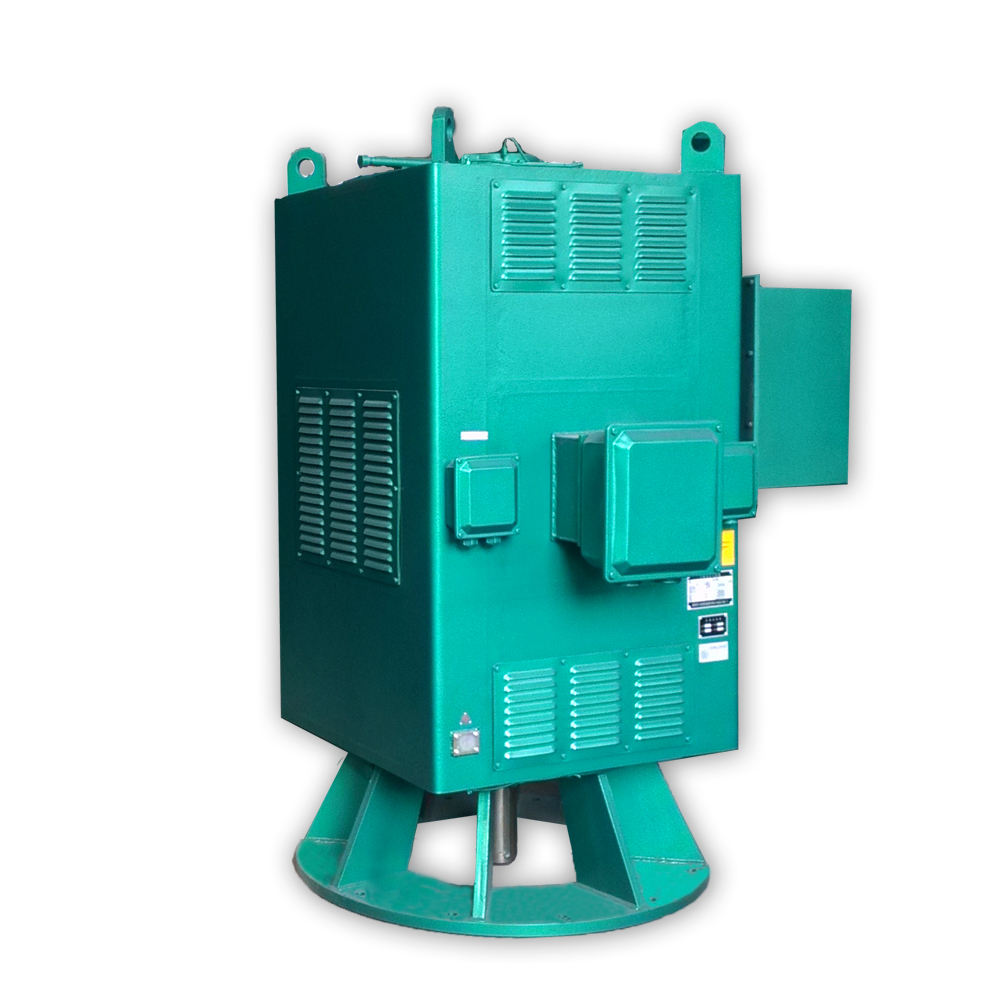

YL series of motors features high efficiency, high energy savings, low vibration, low weight, compact structure, reliable operation and easy maintenance. The motor frame is welded from steel plate, providing excellent rigidity and vibration resistance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop loading and unloading bearing system ensures easy maintenance. Special requirements for voltage, power, frequency and mounting dimensions can be customised.

Send Inquiry

Product Description

Frame size	355-630(6KV), 400-630(10KV)
Output	220KW-1250KW(6KV), 220KW-1120KW(10KV)
Voltage/frequency	6KV, 10KV/50Hz
Mounting arrangements	IM V1
Protection degree	IP23
Cooling method	IC01
Insulation class	F
Ambient temperature	-15°C ~+40°C
Duty	S1
Service factor	1.0

💎

Our items have national accreditation requirements for qualified, high quality products, affordable value, and are welcomed by customers all over the world. Our goods continue to enhance and we look forward to cooperating with you. Should any of these products be of interest, please let us know. We are content to offer a quotation upon receipt of your detailed requirements.

Frame No.	Pole	N	P	M	D	E	F	G	T	LA	AC	AD	L
355	4,6	880	1000	940	100	210	28	90	6	32	1100	800	1800
400	4,6,8,10	1000	1150	1080	110	210	28	100	6	35	1150	850	1900
450	4	1120	1250	1180	120	210	32	109	6	35	1300	900	2100
	6,8,10,12				130	250		119
500	4	1250	1400	1320	130	250	32	119	8	35	1400	965	2400
	6,8,10,12				140		36	128
560	4	1400	1600	1500	150	250	36	138	8	42	1600	1100	2500
	6,8,10,12				160	300	40	147
630	4	1600	1800	1700	170	300	40	157	9	42	1800	1200	2900
	6,8,10,12				180		45	165

The data listed in the table is for the user's reference. In case of any discrepancy with the random file, the random file shall prevail.

Frame No.	Pole	N	P	M	D	E	F	G	T	LA	AC	AD	L
400	4,6	1000	1150	1080	110	210	28	100	6	35	1100	800	1900
450	4,6,8,10	1120	1250	1180	110	210	28	100	6	35	1300	1050	2100
500	4	1250	1400	1320	130	210	32	119	8	35	1400	1110	2400
	6,8,10,12					250
560	4	1400	1600	1500	150	250	36	138	8	42	1600	1200	2500
	6,8,10,12				160	300	40	147
630	4	1600	1800	1700	170	300	40	157	9	42	1800	1300	2900
	6,8,10,12				180		45	165

The data listed in the table is for the user's reference. In case of any discrepancy with the random file, the random file shall prevail.

⚙️

YL series motors frame is welded from steel plate, providing excellent rigidity and vibration resistance. They are manufactured with F insulation structure and VPI vacuum pressure impregnation process. The non-stop loading and unloading bearing system ensures easy maintenance.

Frequently Asked Questions

What are the main power ratings for the YL series motors?

The YL series motors offer an output range of 220KW to 1250KW for 6KV systems and 220KW to 1120KW for 10KV systems.

What is the construction material of the motor frame?

The frame is expertly welded from high-quality steel plate, which ensures excellent rigidity and superior vibration resistance during operation.

Which insulation and impregnation processes are used?

These motors utilize a Class F insulation structure and undergo a VPI (Vacuum Pressure Impregnation) process to ensure durability and electrical reliability.

What are the protection and cooling specifications?

The motors are designed with an IP23 protection degree and utilize the IC01 cooling method, making them suitable for specific industrial environments.

Can maintenance be performed while the motor is operational?

Yes, the YL series features a non-stop loading and unloading bearing system designed specifically to facilitate easy maintenance.

What are the standard ambient operating temperatures?

The motors are designed to operate efficiently within an ambient temperature range of -15°C to +40°C.
