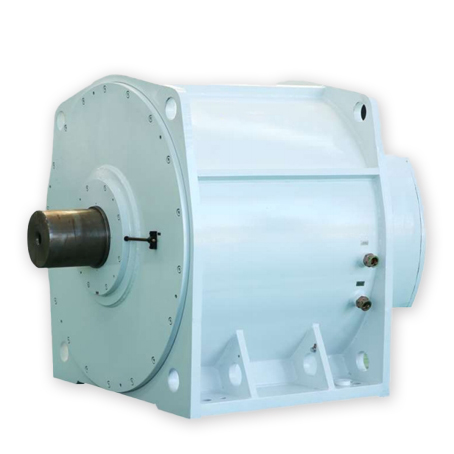

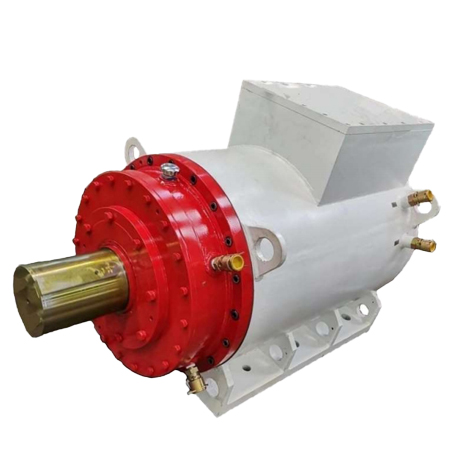

Two types of permanent magnet direct-drive systems were jointly developed and produced by the National Center for Rare Earth Permanent Magnet Motors Engineering Technology, led by Academician Tang Renyuan of the Chinese Academy of Engineering, and our company through the cooperation model of industry-academia-research.

Send Inquiry

Product Description

📊 Low Voltage Permanent Magnet Synchronous Motor Datasheet (55kW-1000kW)

Power (kW)	Frame	Type	r/min	Eff (%)	cosφ	Current (A)			Torque (N.m)	OTM	STM	Weight (kg)
Power (kW)	Frame	Type	r/min	Eff (%)	cosφ	380V	660V	1140V	Torque (N.m)	OTM	STM	Weight (kg)
55	560S	TVF-55/30YC	48	93.5	0.96	105	59	34.3	10943	2	2.2	3040
	450L		60	93.5	0.96	104.2	58	34	8754	2	2.2	2470
	450M		75	93	0.95	103.7	57.5	33	7003	2	2.2	2300
	450S		90	93	0.95	103	57	32.8	5836	2	2.2	2055
75	560M	TVF-75/30YC	48	94.5	0.95	135	80.1	48.8	14922	2	2.2	3100
	560S		60	94.5	0.95	133	79.5	48.6	11938	2	2.2	2650
	450L		75	94	0.95	131	78.9	48.2	9550	2	2.2	2560
	450M		90	94	0.95	129.4	78	48	7958	2	2.2	2130
90	560M	TVF-90/30YC	48	94.5	0.96	165	100	59.7	17906	2	2.2	3200
	560S		60	94.5	0.96	160	98	59.4	14325	2	2.2	2880
	450L		75	94	0.96	157	96	59	11460	2	2.2	2710
	450L		90	94	0.96	155	95	58	9550	2	2.2	2250
110	560L	TVF-110/40YC	48	94.5	0.96	199.5	115	72	21885	2	2.2	3975
	560L		60	94.5	0.96	196	112.7	71.5	17508	2	2.2	3425
	560S		75	94	0.96	191	110	71	14007	2	2.2	3250
	560S		90	94	0.96	186	109	68	11672	2	2.2	3060
High Power Range (Selected Data)
1000	1250L	TVF-1000/60YC	60	95.5	0.96	/	/	595	159167	2	2.2	25050
	1250M		75	95.5	0.96	/	/	590	127333	2	2.2	23300
	1250S		90	95.5	0.96	/	/	583	106111	2	2.2	21675

⚡ High Voltage Permanent Magnet Synchronous Motor Datasheet (315kW-1850kW)

Power (kW)	Frame	Type	r/min	Eff (%)	cosφ	Current (A)			Torque (N.m)	OTM	STM	Weight (kg)
Power (kW)	Frame	Type	r/min	Eff (%)	cosφ	3300V	6000V	10000V	Torque (N.m)	OTM	STM	Weight (kg)
315	680L2	TVF-315/80YC	48	95.5	0.96	64	35	20.8	62672	2	2.2	8650
	680L1		60	95.5	0.96	64	35	20.8	50138	2	2.2	8080
	680M2		75	95	0.96	64	35	20.8	40110	2	2.2	7450
	680M1		90	95	0.96	64	35	20.8	33425	2	2.2	6650
1850	1400L	TVF-1850/80YC	60	95.5	0.96	370	205	123.7	294458	2	2.2	33280
	1400M		75	95.5	0.96	370	205	123.7	235567	2	2.2	31400
	1400S		90	95.5	0.96	370	205	123.7	196306	2	2.2	30590

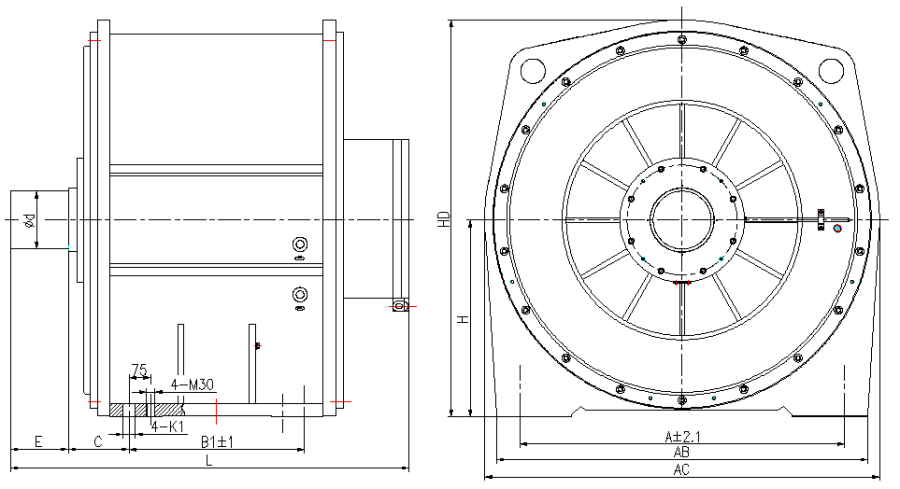

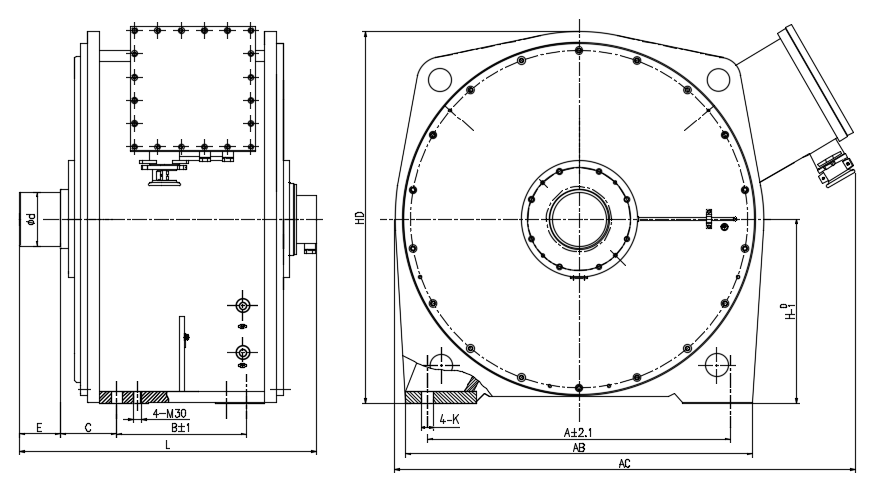

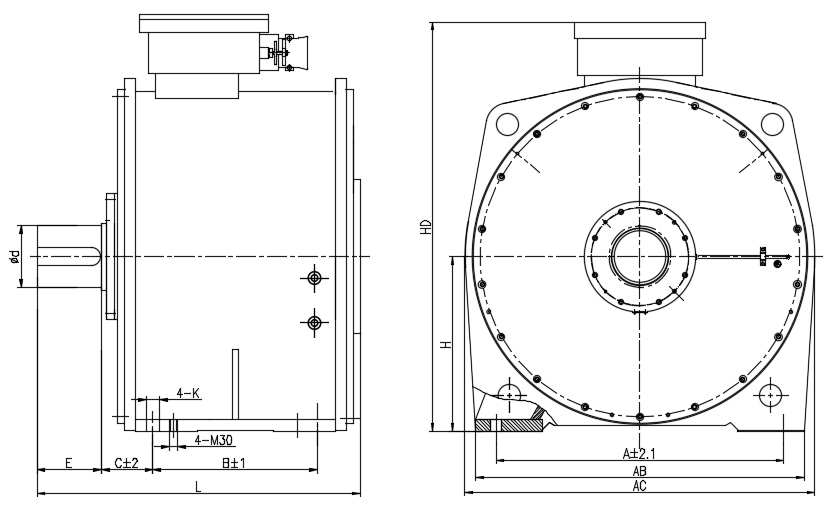

📐 Motor Mounting & Appearance Dimensions (mm)

Frame	Size	Mounting Dimension (mm)							Appearance Dimension (mm)
Frame	Size	φd	E	C	B	A	K	H	L	AB	HD	AC
450	S	130	150	172	445	620	36	450	1010	820	1048	826
	M	130	150	172	560	620	36	450	1185	820	1048	826
	L	150	150	172	630	620	36	450	1405	820	1048	826
560	S	150	150	195	425	810	36	560	1145	1010	1125	1130
	M	150	150	195	500	810	36	560	1220	1010	1125	1130
	L	150	150	195	575	810	36	560	1300	1010	1125	1130

Note: For application scenarios where the installation conditions are restricted by working conditions, the installation dimensions can be customized. Please contact the technical department for details.

❓ Frequently Asked Questions (FAQ)

What is the power range for these Permanent Magnet Synchronous Motors?

The series covers a wide power range, starting from 55kW for low voltage applications up to 1850kW for high voltage industrial requirements.

What voltage ratings are supported by these motor series?

We provide low voltage options (380V, 660V, 1140V) and high voltage options (3300V, 6000V, 10000V) to suit different power grid standards.

Can the mounting dimensions be customized?

Yes, for application scenarios where installation space is restricted, dimensions can be customized through consultation with our technical department.

What is the typical efficiency rating of these motors?

These motors feature high efficiency, typically ranging from 93% to over 95.5%, depending on the specific model and frame size.

Are frame sizes standardized across different power ratings?

Frame sizes range from 450 to 1400, designed to accommodate the torque and heat dissipation requirements of specific power outputs.

What are the weight considerations for the 1000kW+ models?

High-power models are robustly built, with weights ranging from approximately 21,000kg to over 33,000kg for the largest 1850kW units.
